Performance Heads

VW cylinder heads are the best "bang for your buck" on increasing horsepower in your Volkswagen engine. This is because horsepower comes primarily from two things:

- The size of the engine itself;
- The air flow and valve size of the heads.

Remember, an engine is just a huge air pump. The more air you pump through the motor, the more power you get. Engine size can't be changed without installing larger pistons and barrels or a stroker crank... but, new vw cylinder heads can be changed without splitting the engine case.

If splitting the engine case and all of the required machine work just isn't on your list of fun projects, nor is purchasing a stroker kit or a whole new engine for thousands of dollars... MOFOCO VW cylinder heads are a true bolt-on performance upgrade that anyone with basic mechanic skills can accomplish in a few hours. All Mofoco heads are made in the USA!!!

Details & specifications featured on all MOFOCO performance heads:

  • Silicone Brass Valve guides----approved for unleaded pump gas.
  • Heavy Duty Springs

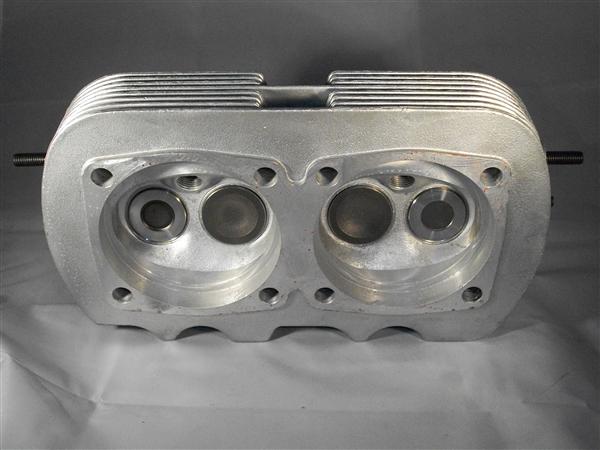

  • 55cc High Quench No Step Chambers
  • Aircraft Casting Technology Casting from Eck Industries in Manitowoc, WI

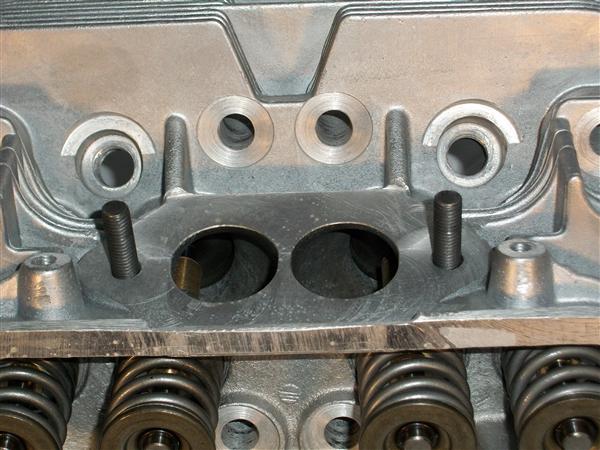

  • Larger & Smoother Port Design for Better Air Flow(best "out of the box" flow on the market)
  • Thicker Port Walls & Larger Intake Face(additional porting can be done for more flow with no welding required)
  • 3/4 Inch Reach Spark Plugs(no more cracks to the seats)
  • Three Angle Valve Job

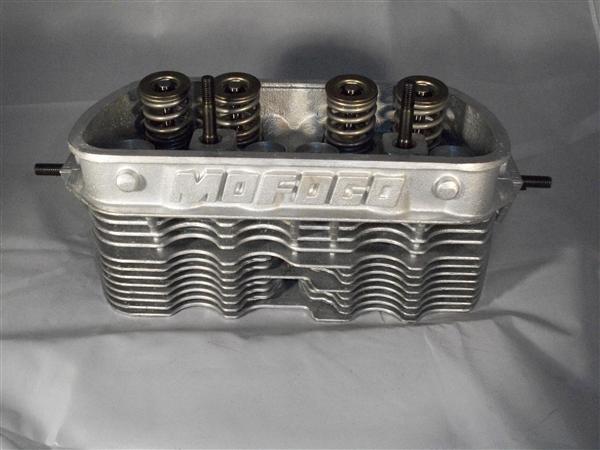

  • More Cooling Fins than the competition - Thicker & Stronger(cools 15% better than other castings)
  • Thicker Combustion Chamber Ceiling
  • Standard 85.5/87mm Bore - larger sizes of 90/92mm & 94mm available
  • Machined on CNC-NC Milling Machines
  • Assembled by skilled artists & mechanics with 25+ years in the VW aircooled industry
  • Bolts on in place of original heads, no special parts required

Which head is right for you?

This question has as many answers as there are unique VW engine setups on earth... but as general guidelines, Mofoco recommends:

Mofoco 041 VW Head, the next step up from stock vw heads meant for engines from 1600cc to 1914cc... these are for everyone looking for more than stock performance, while solving the infamous "bogging" issues caused  by Volkswagen's original design, along with several other MOFOCO designed improvements, such as more & better placed cooling fins.

Mofoco 042 VW Head is made for literally any air cooled VW owner who wishes to have some extra horsepower in reserve, great cooling, and overall higher street performance... Hot VWs rated the Mofoco 042 as the highest flowing unported VW heads available! These recommended for any engine 1600cc to 1914cc, however for the larger stroker engines, Mofoco recommends...

...the Mofoco 050 High Performance VW Head! our self designed 050's were created with high horsepower, high capacity engines in mind. Featuring unique D-Shaped intake ports, these are frankly the most powerful street use VW heads on the market.

Quality takes time...

Mofoco performance VW heads are custom built to order! Manufacturing time varies with market demand on standard performance heads so please call or email for current lead times. Porting and polishing will take an additional day or two past our standard current lead time. If you have any special requests, please e-mail Mofoco's president, Roy Henning.

Need to talk to a VW expert?

We are always ready to put our tools back on the bench, wash our hands & come to the phone or computer. Call us up at 414-963-1020, from 9-5pm CST or email Roy at roy@mofoco.com.

Categories

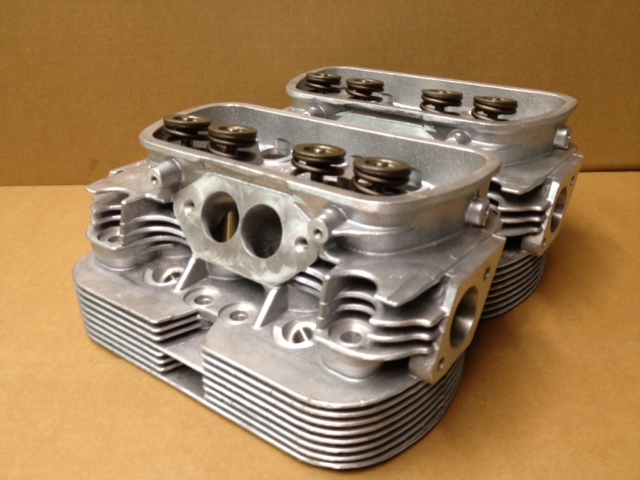

Mofoco 040 Dual Port New Cast Stock Cylinder Head ***SCORE APPROVED***

# MFC-CCH040
 Mofoco
Good...

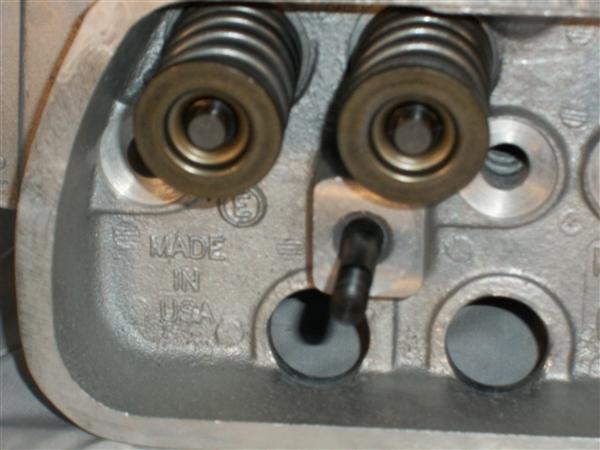

MOFOCO boasts the only completely MADE IN USA VW Aircooled Cylinder Heads. The 040 head is a stock replacement cylinder head with 35.5mm intake valves and 32mm exhaust valves. We have specifically designed these castings for better cooling and better performance than original castings.
Price: $249.99
Stainless Steel Vavles
Intake & Exhaust  $25.00
Machine Head for Dual Plugs


Dual 12mm Spark Plugs  $100.00
Flycutt and CC Heads

All new Mofoco cast cylinder heads come standard with 55cc chambers.  If you need smaller chambers to increase the compression ratio on your engine, please choose from the options below.

Flycut from 46cc to 54cc  $35.00
Flycut from 35cc to 45cc  $65.00
Flycut from 28cc to 34cc  $115.00
Drill & Tap Fuel Injection Sensor
Fuel Injection Sensor (One Head)  $10.00
Dual Springs & Chromoly Retainers

Dual Springs are recommended for hi-rev applications and come with chromoly retainers.

Yes  $40.00
Bore Size*

Select the desired bore size. Standard size of 85.5mm & 87mm cylinders; 90.5/92mm or 94mm sizes are available.

85.5 / 87mm
90.5 / 92mm  $25.00
94mm  $35.00
Quantity:  head

Mofoco 040A 40mmX35.5mm Cylinder Head DUAL 12mm spark plug holes, 92mm bore

# MFC-CCH040A
 Mofoco
Good...



MOFOCO manufactures the only truely MADE IN THE USA VW aircooled cylinder head on the marlet.  The 040A is specifically designed for constant run RPM engines.

Price: $995.00
Bore for 94mm
  $40.00
Flycutt and CC Heads

Please specify CC in the order notes section during checkout

Flycutt from 46cc to 54cc  $35.00
Flycutt from 45cc to 35cc  $65.00
Flycut from 28cc to 34cc  $115.00
Quantity:  head

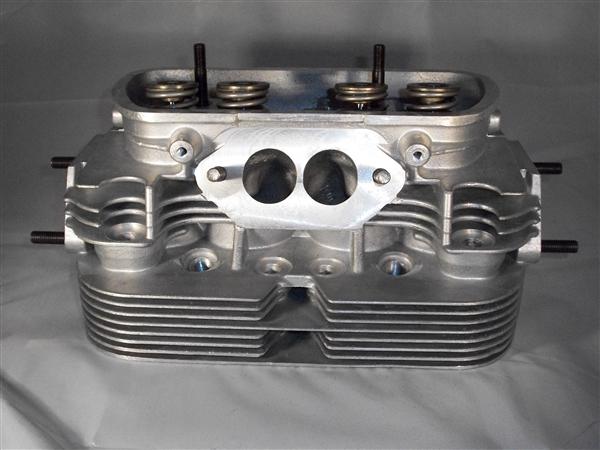

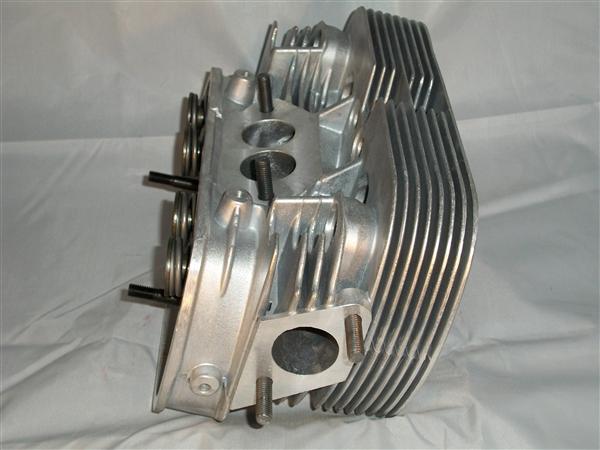

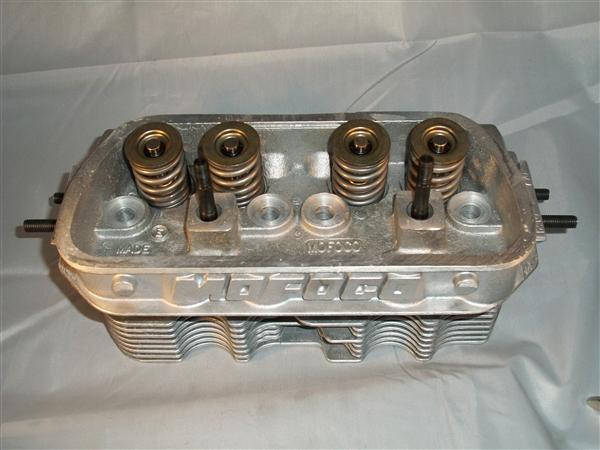

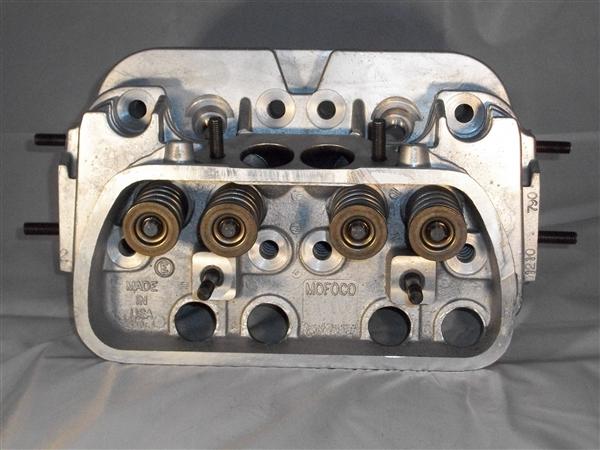

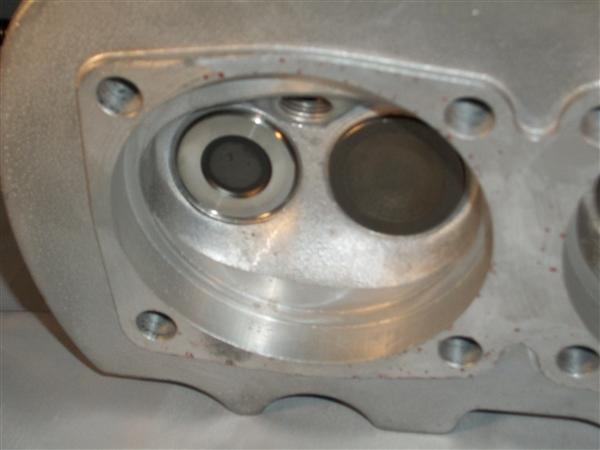

MOFOCO 041 CYLINDER HEAD

# MFC-CCH041
 Mofoco
Better...

MOFOCO 041 CYLINDER HEAD

The next step up from stock, Mofoco 041s were designed to solve the engine bogging issues that many VWs with stock heads suffered from.

Price: $289.99
Flycutt and CC Heads

Please specify CC in the order notes section during checkout

Flycutt from 46cc to 54cc  $35.00
Flycutt from 45cc to 35cc  $65.00
Flycutt from 28cc to 34cc  $115.00
Stainless Steel Valves
Intake & Exhaust Stainless Steel   $25.00
Machine Head for Dual Plugs


Dual 12mm Spark Plugs  $100.00
Drill & Tap Fuel Injection Sensor
Fuel Injection Sensor (One Head)  $10.00
Dual Springs

Dual Springs are recommended for hi-rev applications and come with chromoly retainers.

Dual Springs/Chromoly Retainers  $40.00
Bore Size

Select the desired bore size. Standard size of 85.5mm & 87mm cylinders; 90.5/92mm or 94mm sizes are available.

85.5 / 87mm
90.5/ 92mm  $25.00
94mm  $35.00
Quantity:  head

MOFOCO 042 BIG VALVE CYLINDER HEAD

# MFC-CCH042
 Mofoco
Best...

MOFOCO 042 CYLINDER HEAD

The sweet spot between horsepower and efficiency, Mofoco 042s are rated as the highest flowing as cast round port heads available.

Price: $339.99
Flycut and CC Heads

Please specify CC in the order notes section during checkout

Flycut from 46cc to 54cc  $35.00
Flycut from 45cc to 35cc  $65.00
Flycut from 34cc to 28cc  $115.00
Machine Head for Dual Plugs


Dual 12mm Spark Plugs  $100.00
Drill & Tap Fuel Injection Sensor
Fuel Injection Sensor  $5.00
Dual Springs

Dual Springs are recommended for hi-rev applications and have 180lbs of seat pressure at 1.5" installed height.

Dual Springs -4037  $40.00
Bore Size

Select the desired bore size. Standard size of 85.5mm & 87mm cylinders; 90.5/92mm or 94mm sizes are available.

85.5 / 87mm
90.5 / 92mm  $25.00
94mm  $35.00
Quantity:  head

MOFOCO 050 RASSER AIR COOLED VW CYLINDER HEAD

# MFC-CCH050R
 Mofoco
MONSTER!

MOFOCO 050 RASSER CYLINDER HEAD w/D-Shaped Intake Ports

The 050 RASSER cylinder head has been specifically designed for 1776cc to 2110cc engines with higher lift cams and dual carbs.

Price: $339.99
Machine Head for Dual Plugs


Dual 12mm Spark Plugs  $100.00
Manley Valves
Manley Racing Stainless Steel Valves  $75.00
Flycut and CC Heads

Please specify CC in the order notes section during checkout

Flycut from 46cc to 54cc  $35.00
Flycut from 45cc to 35cc  $65.00
Flycut from 28cc to 34cc  $115.00
Dual Springs

Dual Springs are recommended for hi-rev applications.

Dual Springs  $20.00
Bore Size

Select the desired bore size. Standard size of 85.5mm & 87mm cylinders; 90.5/92mm or 94mm sizes are available.

85.5 / 87mm
90.5 / 92mm  $25.00
94mm  $35.00
Quantity:  head

MOFOCO 050 BIG VALVE AIR COOLED VW CYLINDER HEAD

# MFC-CCH050
 Mofoco
MONSTER!

MOFOCO 050 BIG VALVE CYLINDER HEAD w/D-Shaped Intake Ports

The 050 big valve cylinder head is specifically designed for 1914cc to 2332cc engines with high lift cams and dual 2 barrel carbs.

Price: $399.99
Flycut and CC Heads

Please specify CC in the order notes section during checkout

Flycut from 46cc to 54cc  $35.00
Flycut from 45cc to 35cc  $65.00
Flycut from 28cc to 34cc  $115.00
Port and Polish
Machine Head for Dual Plugs


Dual 12mm Spark Plugs  $100.00
Manley Valves
Manley Racing Stainless Steel Valves  $75.00
Dual Springs

Dual Springs are recommended for hi-rev applications.

Dual Springs  $40.00
Bore Size

Select the desired bore size. Standard size of 85.5mm & 87mm cylinders; 90.5/92mm or 94mm sizes are available.

85.5 / 87mm
90.5 / 92mm  $25.00
94mm  $35.00
Quantity:  head
