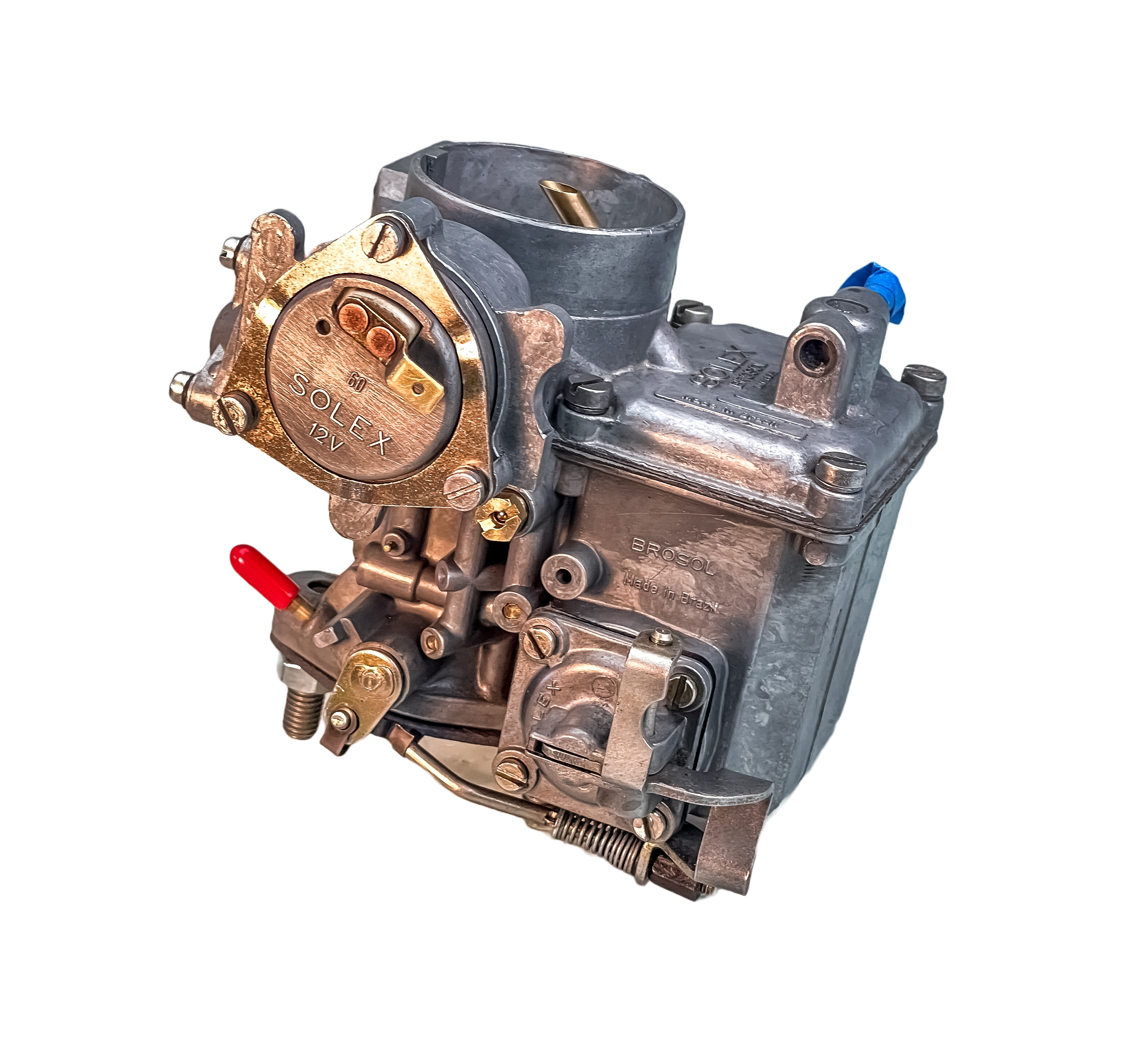

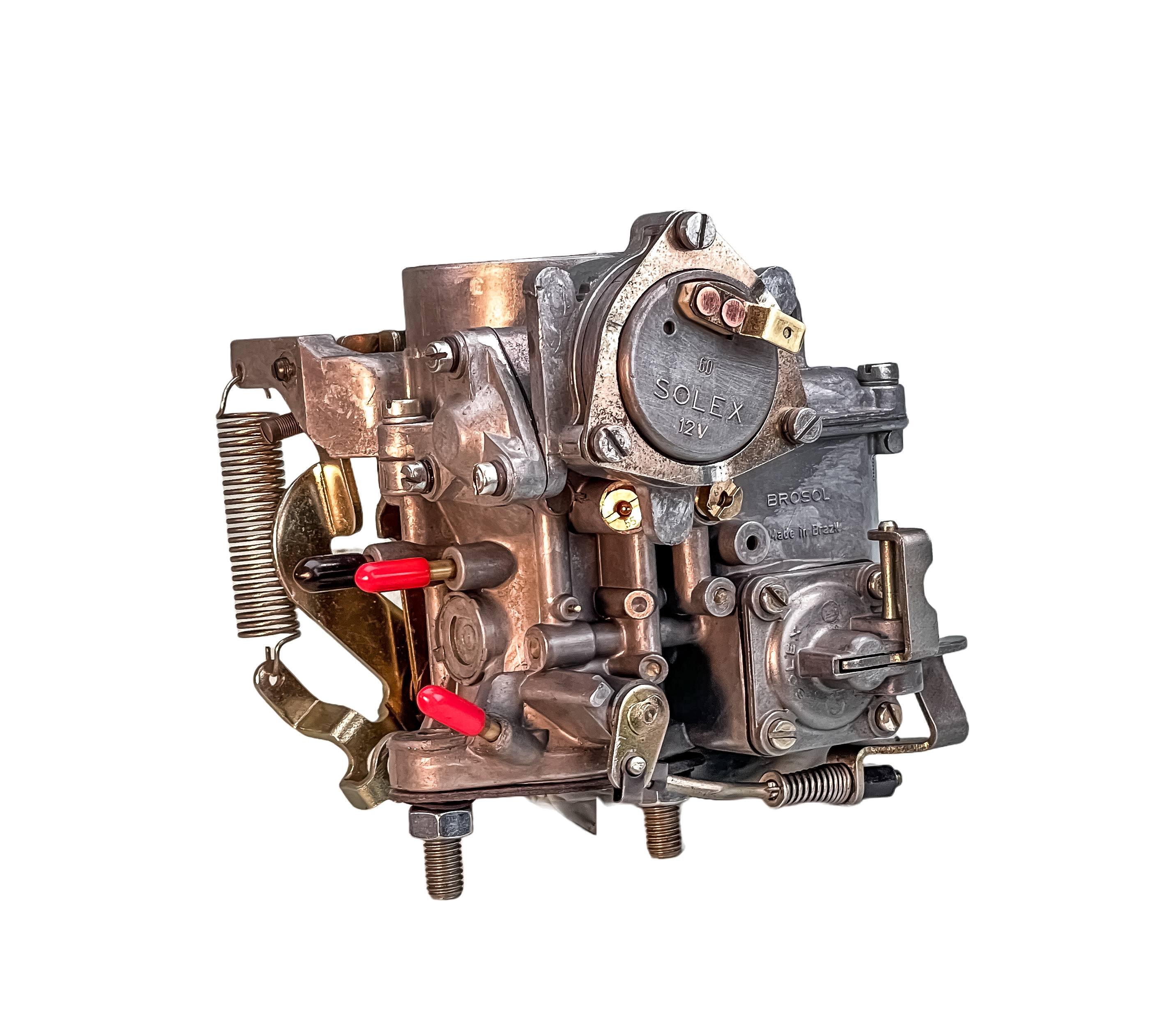

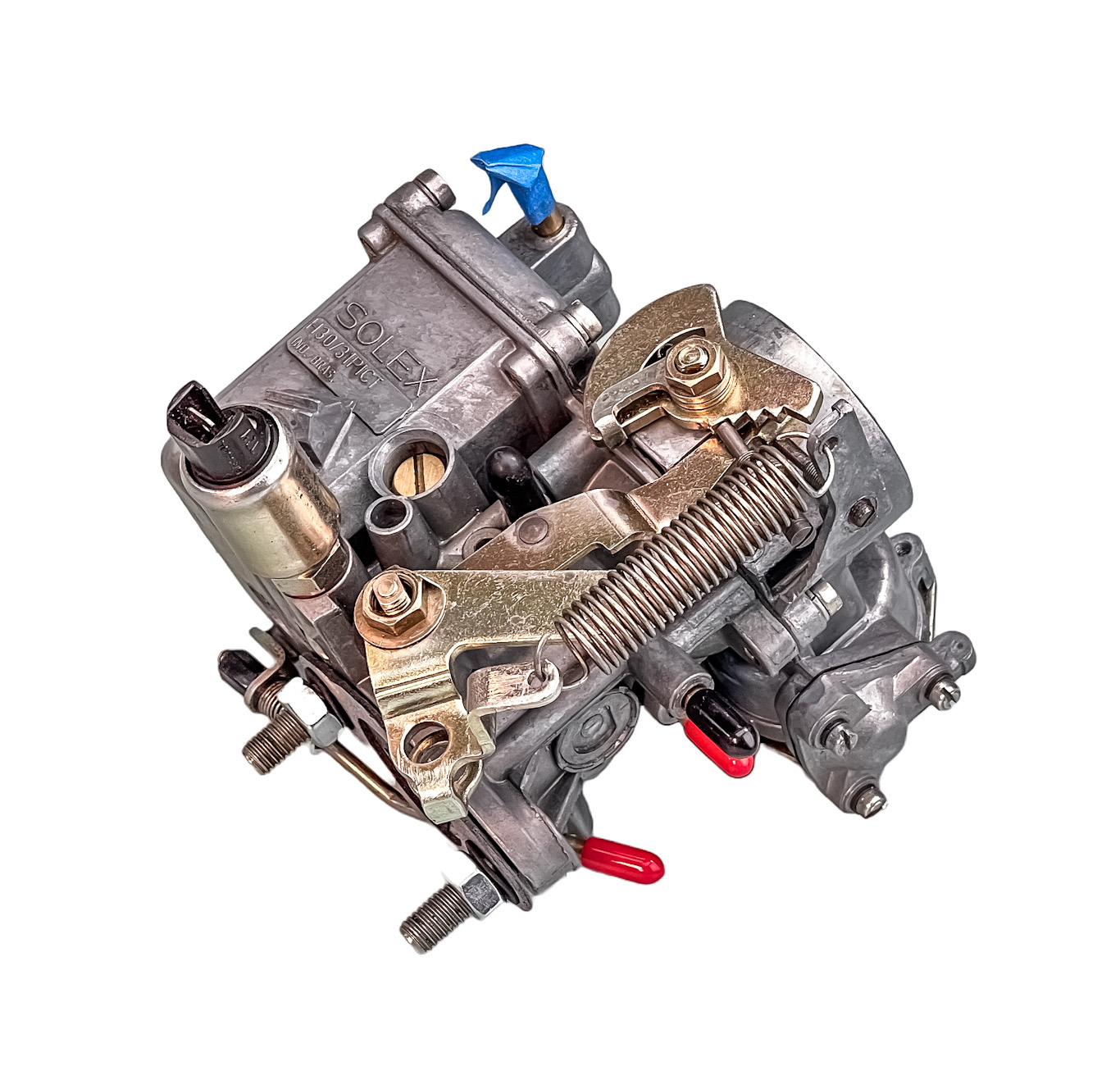

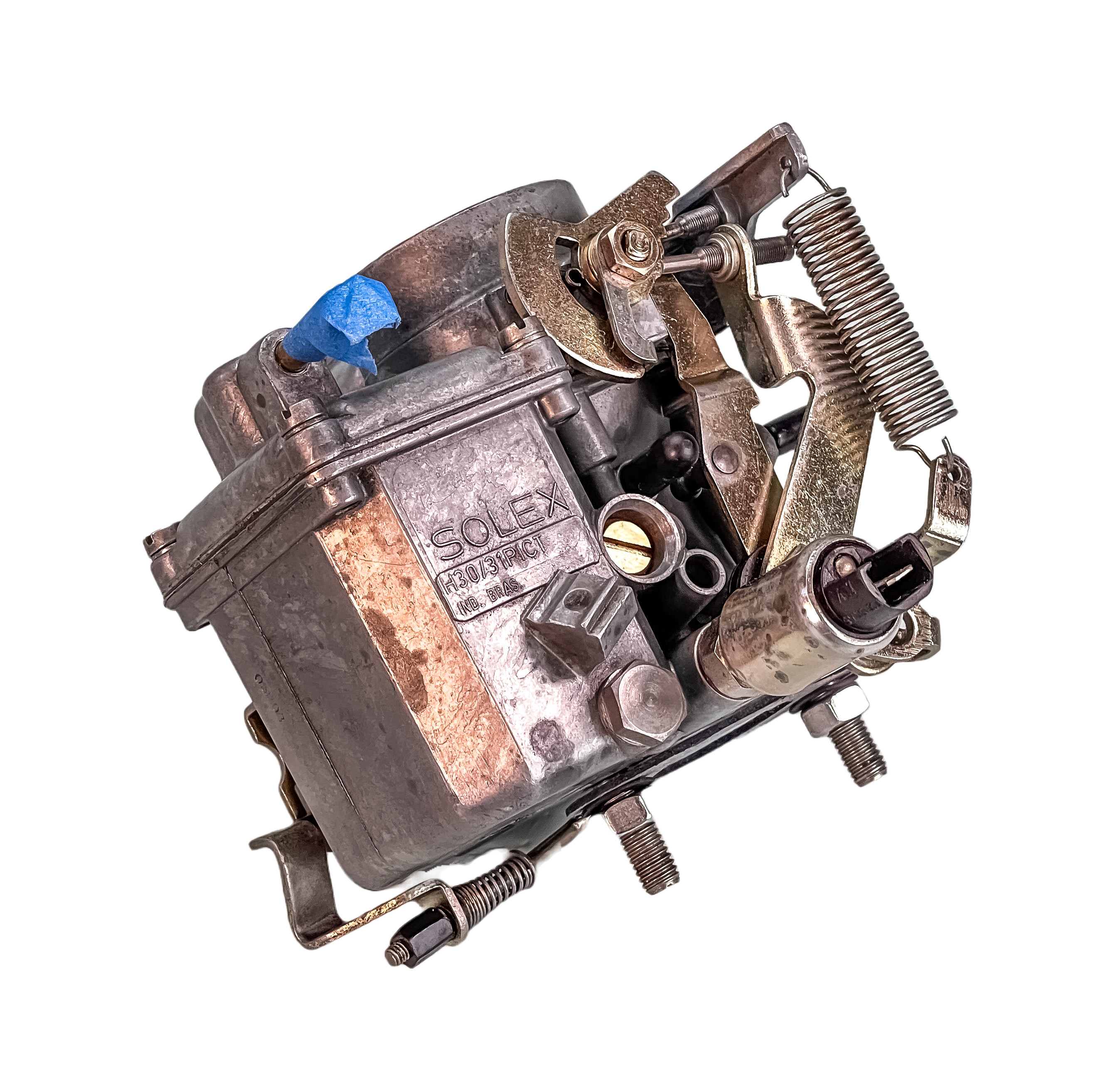

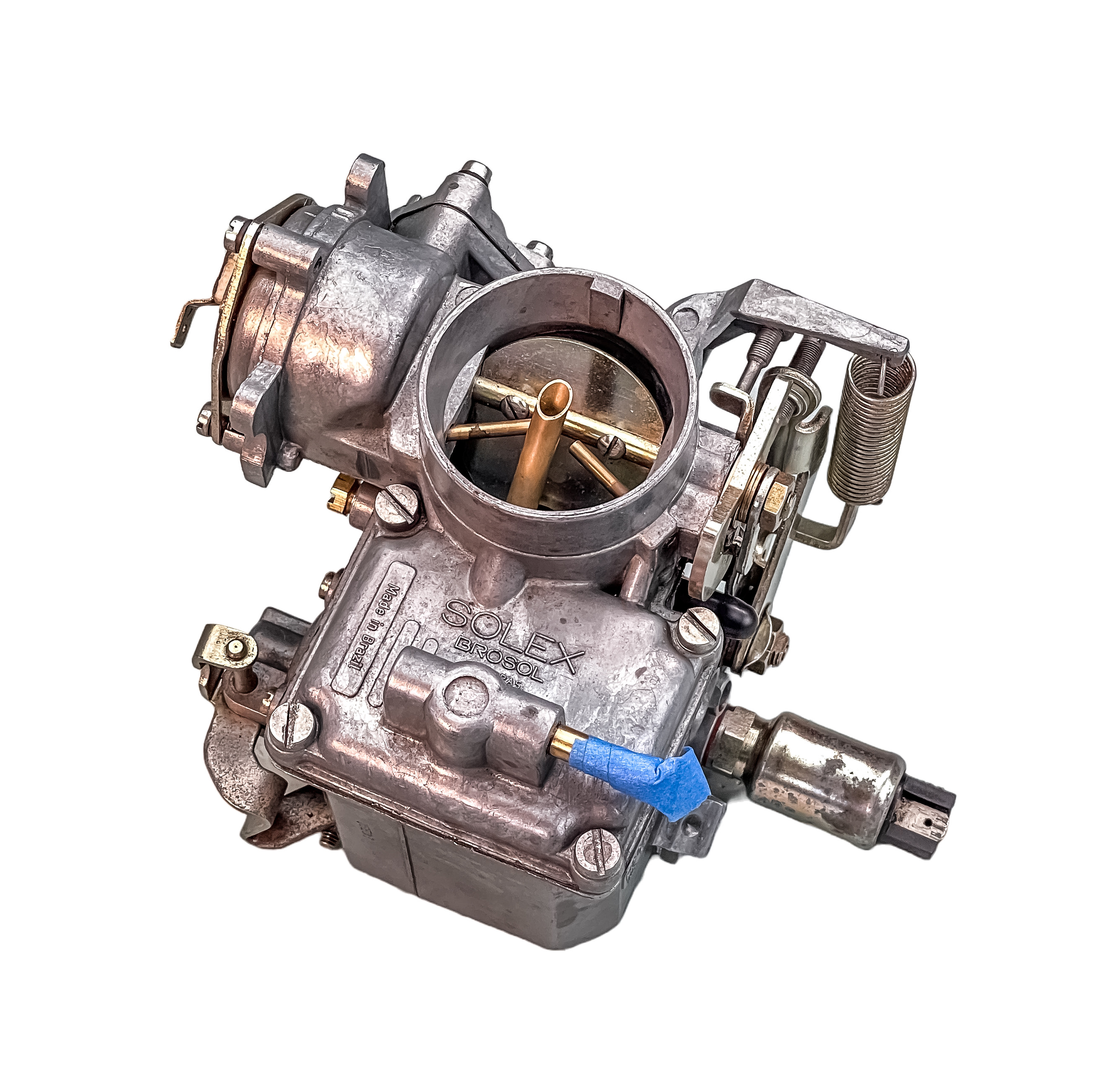

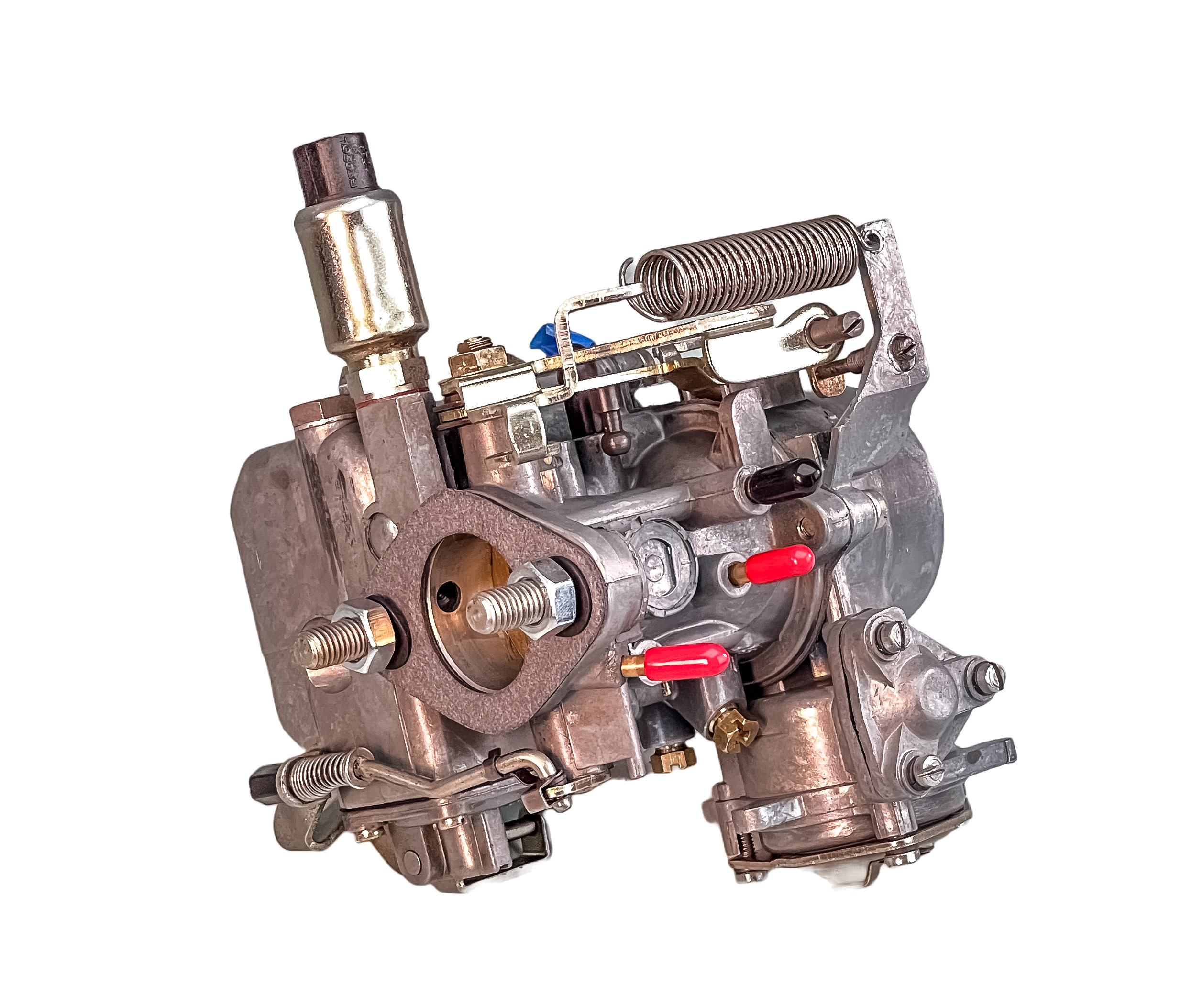

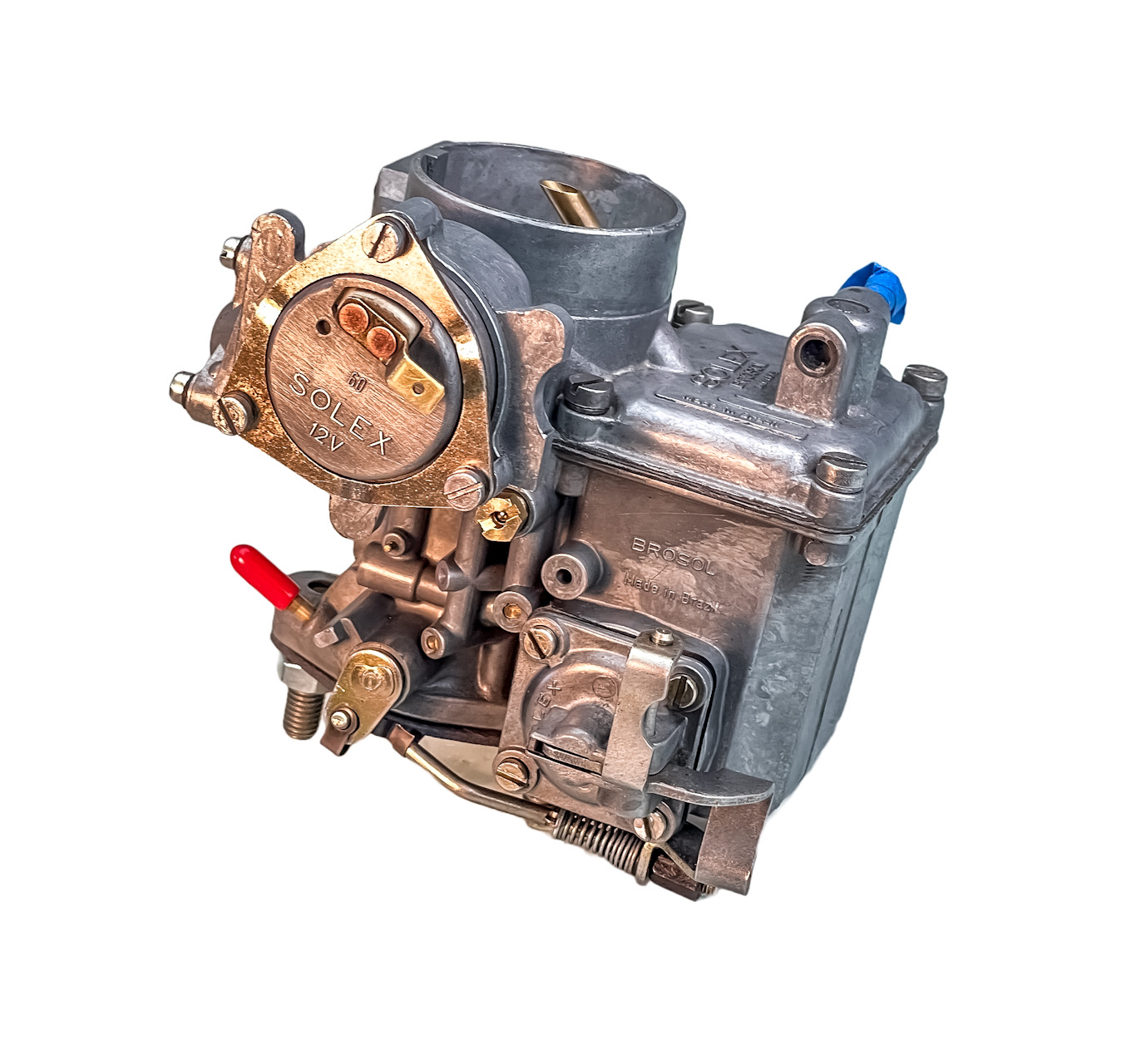

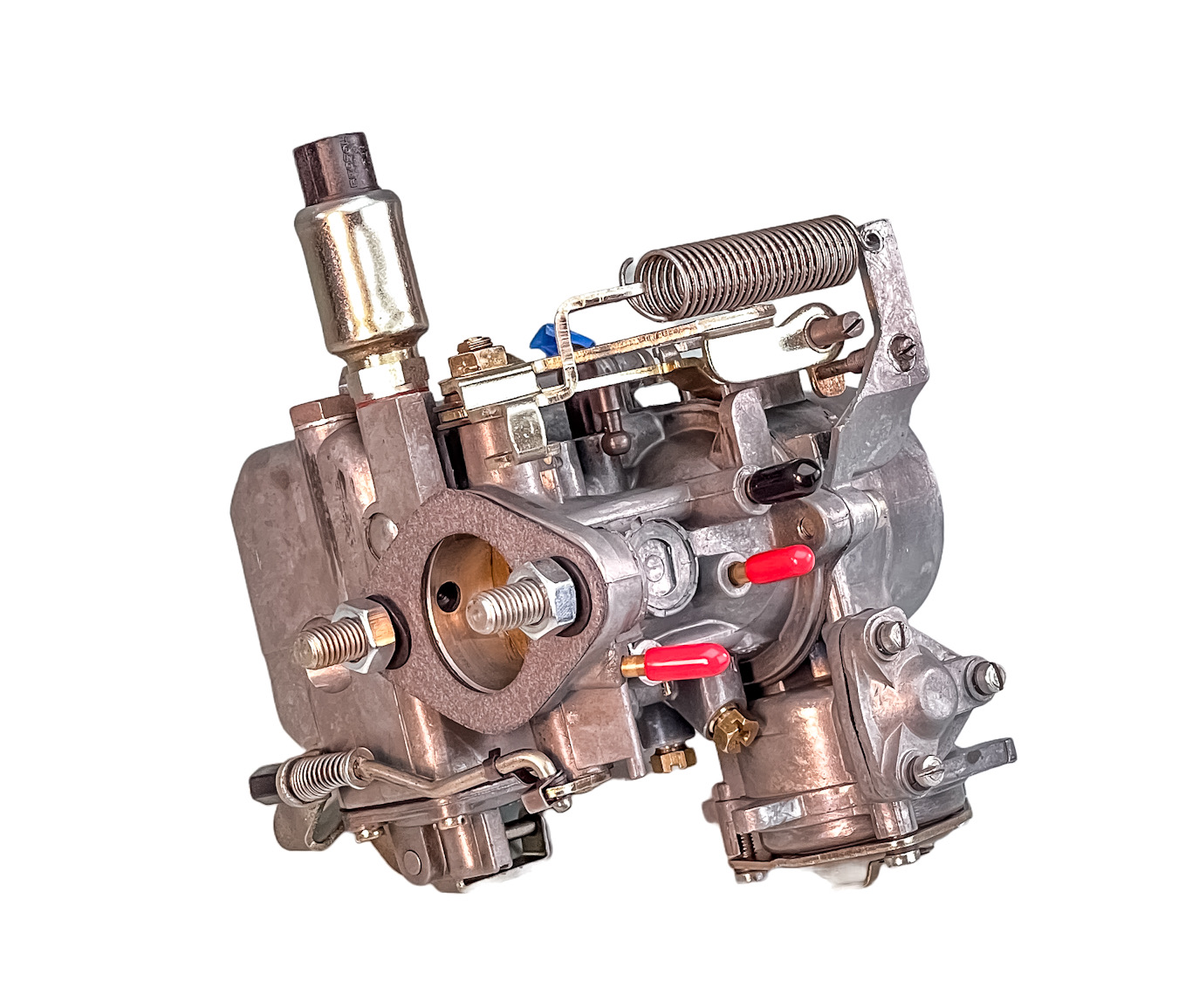

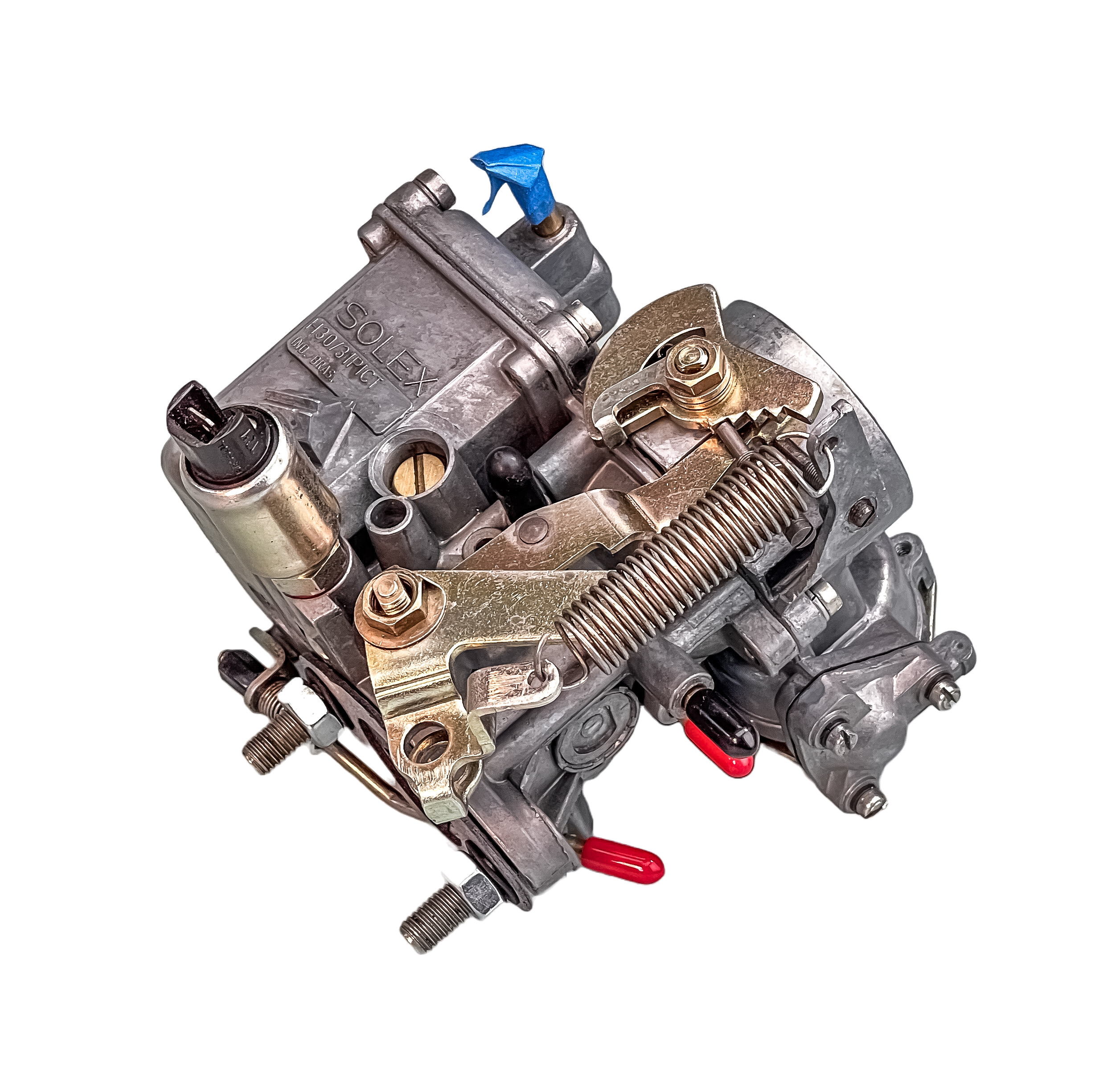

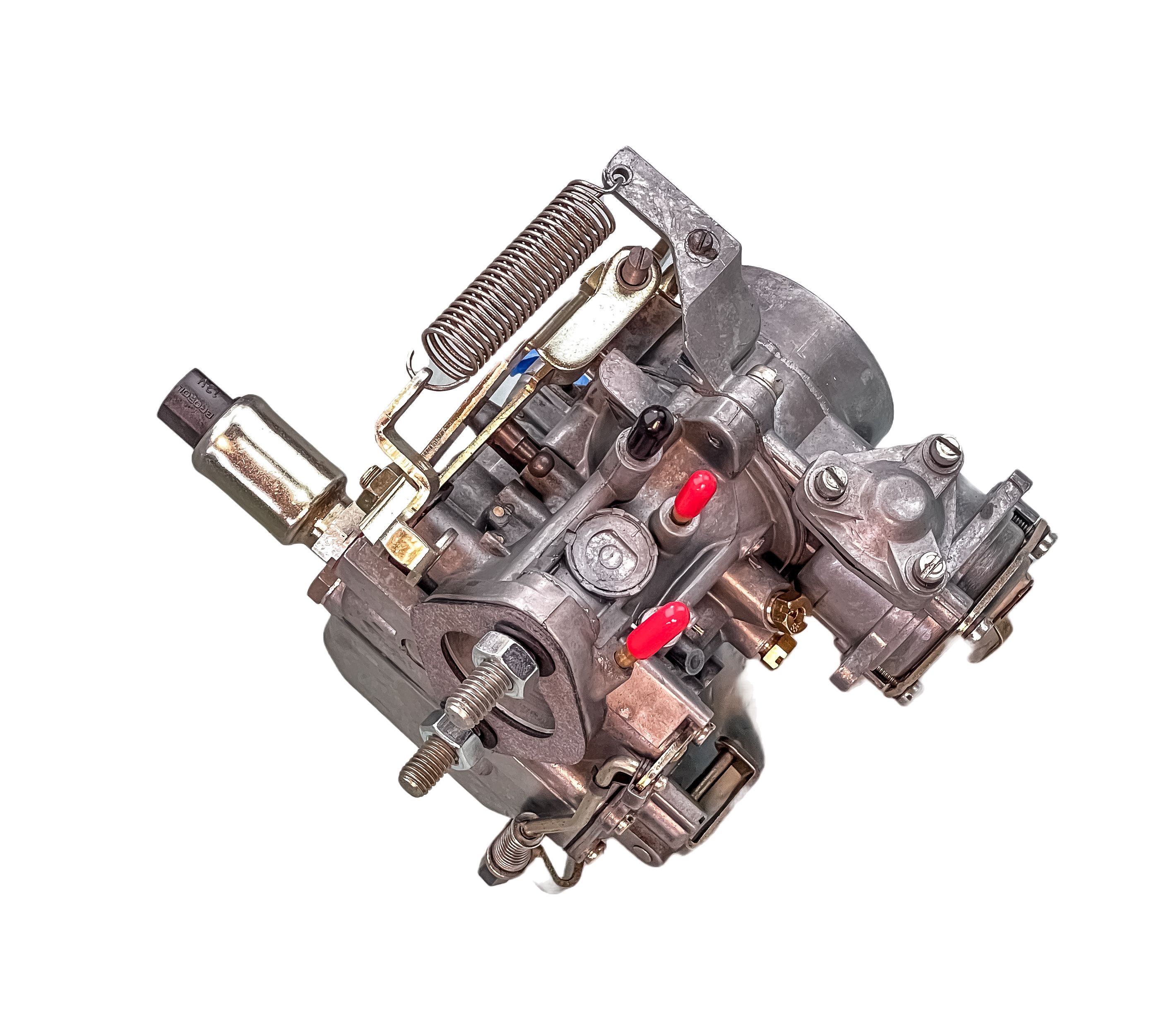

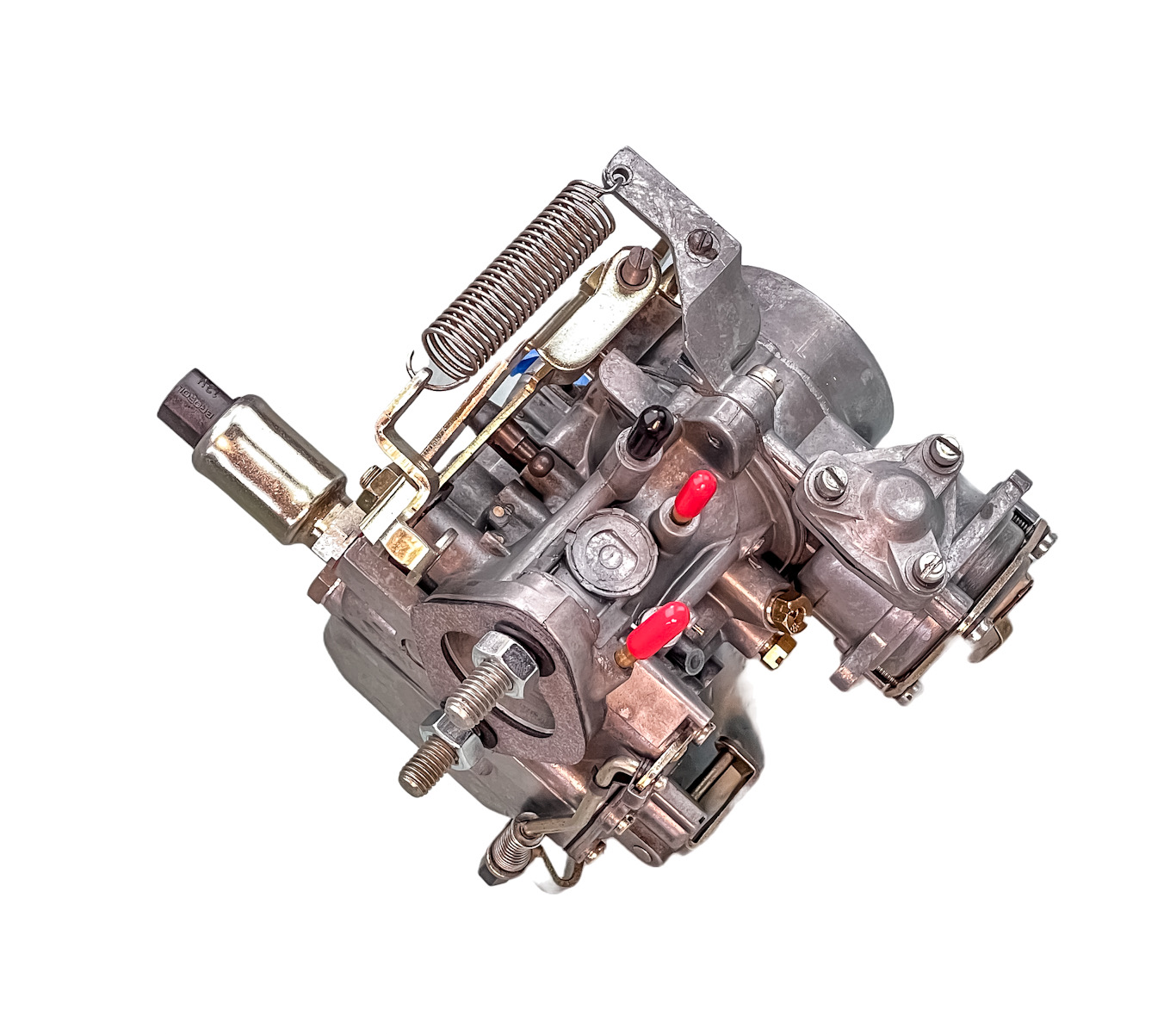

REFURBISHED VW SOLEX BROSOL OE BRAZIL CARBURETOR 12v CHOKE - JETTED FOR 009 DISTRIBUTORS

# H30/31 PICT

55 - IDLE  //  130 - MAIN  //  125 - A/C  //  65 - POWER

FITS TYPE 1 AIR-COOLED VW

This carburetor was installed on 1967 to 1970 single port upright motors, includes a 12 volt choke and can be used to replace either the older 28 PICT carburetor or, with an adapter kit (VW # 113 129 034), the 34 PICT carb. If you are adapting this to an earlier car that has a 6 volt electrical system, you’ll need to get a 6 volt choke (VW # 113 129 191H) separately.
